At a Glance
The Derived data types directory of the structural view of the project allows you to access the DDT types.

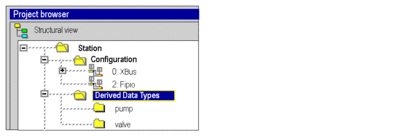

The following illustration shows an example of a directory tree of the Derived data types directory:
Associated services
The Derived Data Types directory allows you to access the following services, which can be reached via the contextual menu:
Directory |
Services |
|---|---|
Derived Data Types |
Open: allows you to access the DDT types tab of the data editor, from which you can: Get from Library: allows you read access to one or more DDT types from a library. Put in Library: used to archive all the DDTs in a library. Export: allows you to access export of all DDT types. Import: allows you to access import of one or more DDT types. |
DDT (Input, Output, .etc.) |
Open: allows you to access the DDT in the DDT types tab of the data editor. Delete: allows you to delete the DDT. Put in Library: allows you write access to the DDT in a library. Analyze: allows you to analyze the DDT. Properties: allows you to access the DDT properties. Export: allows you to access export of all DDT types. |
