At a Glance

The Communication directory of the structural view of the project allows you to access the configuration of the networks.

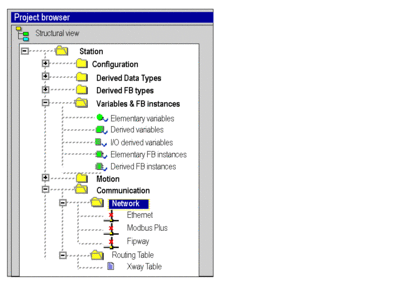

The following illustration shows an example of a directory tree of the Communication directory:

Associated services

The Communication directory allows you to access the following services, which can be reached via the contextual menu:

Directory

Services

Communication

Export: allows you to access export of all networks.

Import: allows you to access import of one or more networks.

Network

New Network: allows you to add a network to your project.

Network

(Network_1, Modbus Plus_A, etc.)

Open: allows you to access the corresponding network editor: Ethernet, Modbus Plus, Fipway.

Export: allows you to access export of one network.

Delete: allows you to delete a network.

Properties: allows you to access the network properties.

Routing Table

Open: allows you to access the configuration of a bridge between 2 networks (routing tables).
