At a Glance

Once you have selected one or more error messages (active errors only), you have a number of options available for accessing the Diagnostics Viewer commands:

  • using the contextual menu,

  • using the function keys,

  • using the toolbar.

Contextual Menu

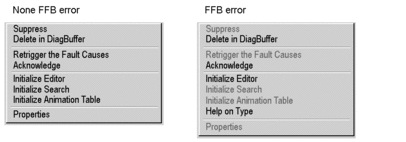

The contextual menu can be accessed by right-clicking a message from the list with the mouse:

The commands and their function keys from the contextual menu are as follows:

Command

Function key

Description

Suppress

-

deletion of the message(s) selected

Delete in DiagBuffer

-

deletion of alarms in the diagnostics buffer

Retrigger the Fault Causes

F5

reactivation of the diagnostics function block

Acknowledge

F6

acknowledgments of selected message(s)

Initialize Editor

Enter

activation of the language editor

Initialize Search

Ctrl + U

activation of the cross references tool (search for active errors)

Initialize Animation Table

Ctrl + T

activation of the animation table tool (initialize animation table of active errors

Help on Type

-

opening the online help for the concerned FFB

Properties

Alt + Enter

displaying the Diagnostics Viewer properties box

NOTE: The Initialize Search and Initialize Animation Table commands are also accessible through the contextual menu in the additional message information area.

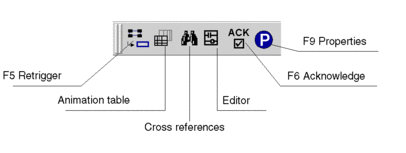

Toolbar

The icons of the toolbar corresponding to the contextual menu or to the function keys are as follows:
