Procedure

The table below describes the procedure for deleting a hyperlink in the attributes of a DFB type.

Step

Action

1

Go to the DFB Types tab of the data editor.

2

Right-click the DFB type whose hyperlink you wish to delete.

Result: the contextual menu appears.

3

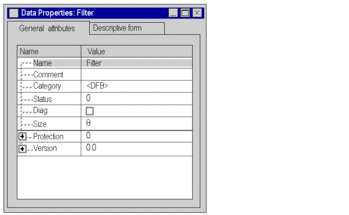

Choose the Data Properties command.

Result: the corresponding dialog box appears on the screen.

4

From the Descriptive form tab, click on the Edit button.

Result: the Descriptive form window appears.

Details of window

5

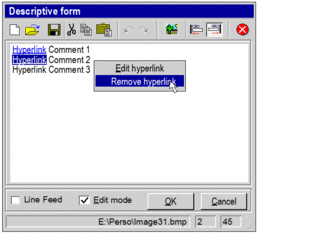

Right click in the entry field, positioning the mouse on the hyperlink to be deleted.

Result: the contextual menu appears.

6

Click on Remove hyperlink in the contextual menu.

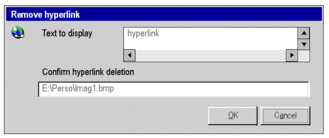

Result: the Remove hyperlink window appears.

7

You do not have access to the Text to display or Confirm the deletion of this hyperlink entry fields.

8

Click OK to confirm your choice or click Cancel to cancel.
