Procedure

The table below describes the procedure for editing the properties of a hyperlink in the attributes of a DFB type.

Step

Action

1

Go to the DFB Types tab of the data editor.

2

Right-click the DFB type whose hyperlink you wish to edit.

Result: the contextual menu appears.

3

Choose the Data Properties command.

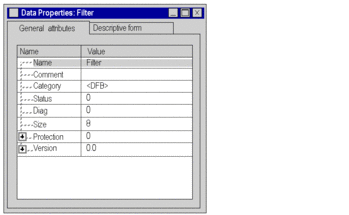

Result: the corresponding dialog box appears on the screen.

4

Select the Descriptive form tab, and click on the Edit button.

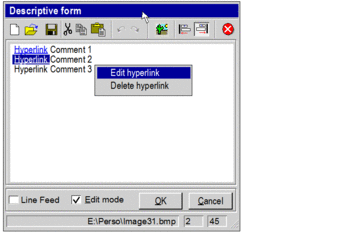

Result: the Descriptive form window appears.

5

Right click in the entry field, positioning the mouse on the hyperlink to edit.

Result: the contextual menu appears.

6

Click on Edit hyperlink in the contextual menu.

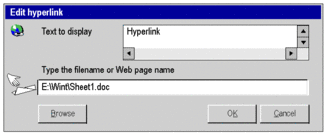

Result: the Edit hyperlink window appears.

7

The name of the hyperlink appears in the Text to display field.

In the Type the filename or Web page name field:

  • click Browse to select the target document (example: C:\Program Files\Office2000\Office\Example) or

  • change the Internet address (example: https://www.se.com).

8

Click OK to confirm your choice.
