At a Glance
The information screen on the objects, accessible via the command allows the information on each of the objects contained in a screen to be displayed. This screen is particularly useful for compound objects.
Information screen on an object

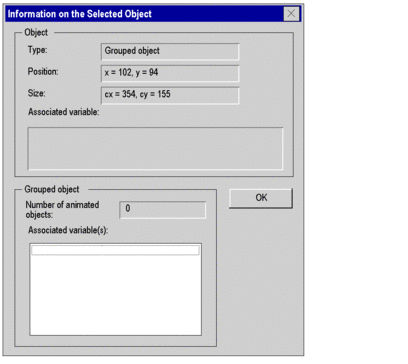

The screen below provides information on a graphic object.
Description
The following table describes the information offered by this screen.
Information |
Description |
|---|---|
Type |
Type of object. ellipse, button, cursor, object compound, etc. |
Position |
Coordinates of the object’s top left point in pixels. |
Size |
Size of the object in pixels. |
Associated variable |
Variable linked to a simple object or controlled by a simple object. In the case of a compound object, this field is left blank. The information is placed in the Grouped object zone. |
Grouped object |
Number of simple animated objects contained in a compound object and the variables associated with (or controlled by) this compound object. In the case of a simple-type object, this field is not displayed. |
