Diagnostic Screen for the BMX MSP 0200 PTO module
Original instructions
About us
At a Glance
This section presents the diagnostic screen for the BMX MSP 0200 PTO module. A module’s diagnostic screen may only be accessed in online mode unlike other modules for M340, the PTO module diagnostic screen is accessible even if CH_ERROR = 0.
Illustration

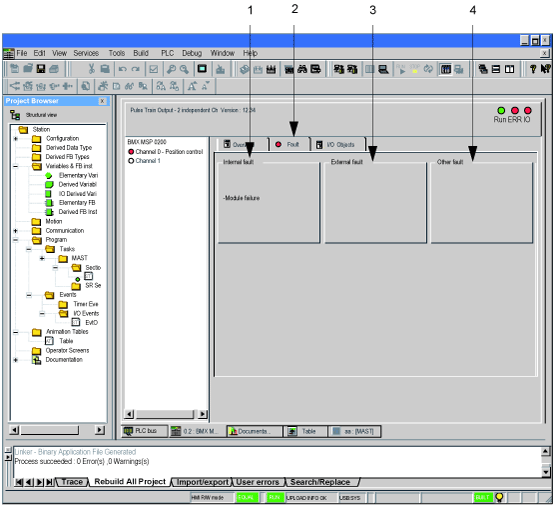

The figure below presents the Diagnostic Screen for the BMX MSP 0200 PTO module in position control mode.
Description of the Screen
The following table presents the various parts of the diagnostic screen.
Number
Element
Function
1
Internal faults field
This field displays the module’s active internal detected errors.
2
Tab
The tab in the foreground indicates the current mode. The current mode is therefore the detected errors display mode in this example.
3
External faults field
This field displays the module’s active external errors.
4
Other faults field
This field displays the module’s active detected errors, other than internal and external detected errors.
