Frequency Generator Complex Profile
Original instructions
About us
At a Glance
When a frequency generator command is running, it is possible to modify the target frequency, such as shown by the figure below:

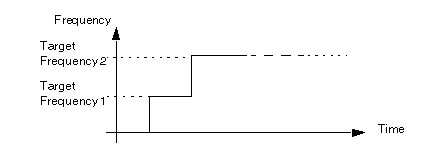

Frequency generator - change of frequency
FBD program

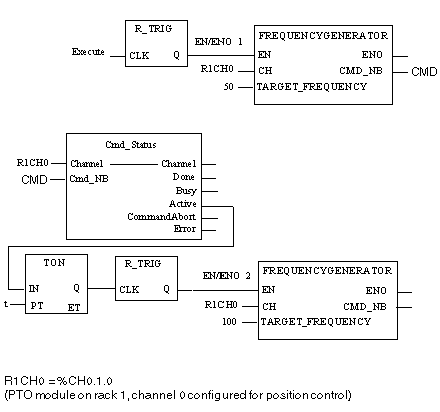

Program to obtain the above profile:
Cmd_Status is the
command status follow up function.
Time Diagram

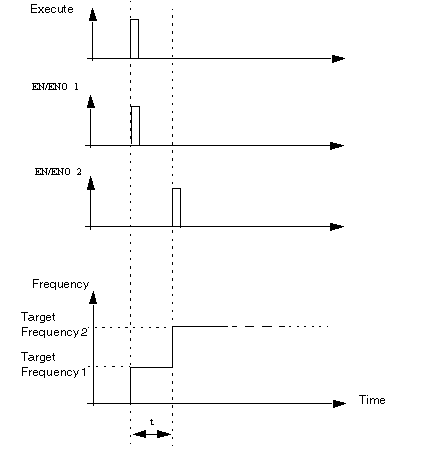

Time diagram of the frequency generators Input / Output
