Physical Description of the BMX MSP 0200 PTO module
Original instructions
About us
Illustration

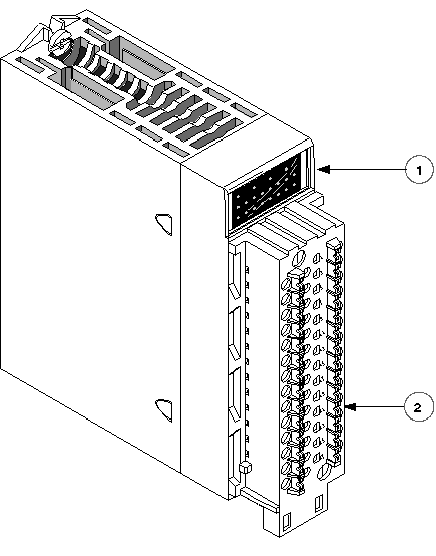

The figures below present the BMX MSP 0200 PTO module :
Physical Elements of the Modules
This table presents the elements of the MSP 0200 PTO module :
Number
Description
1
Module state LEDs:
  • State LEDs at module level
  • State LEDs at channel level
2
28-pin connector
Accessories
The BMX MSP 0200 PTO module requires the use of a BMX FTB 2800/2820 28-pin terminal block.
