The BMX MSP 0200 module is a standard format module that enables to control of a third party drives with an open collector compatible input and integrated position loop.
The module has 2 Pulse Train Output (PTO) channels.
Illustration

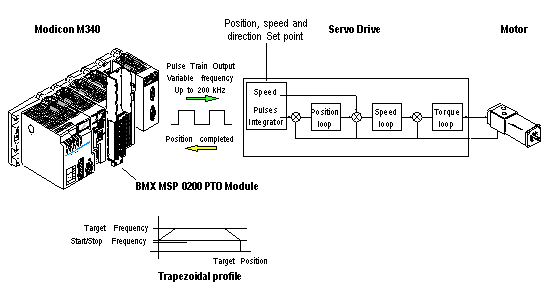

The following illustration shows the command diagram to a third party drive.
