MOD_TRACK: Adjustment of track parameters

Function description

The MOD_TRACK function is used to adjust a track dynamically. Transferring new data does not require the cam processor to switch to STOP mode.

If the transfer:

is correctly carried out, the new parameters are taken into consideration,
is not successfully carried out, then the cam processor remains in RUN mode with the old values.

NOTE: the MOD_TRACK function affects only the forward value of a track

For a more detailed description of how this function operates, refer to the application specific electronic cam manual.

The additional parameters and can be configured.

Representation in FBD

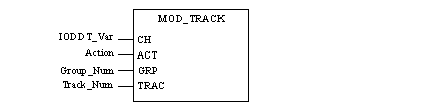

Representation:

Representation in LD

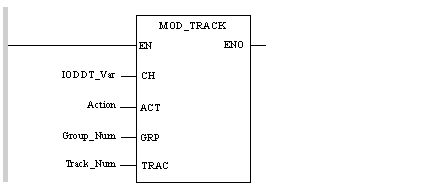

Representation:

Representation in IL

Representation:

LD IODDT_Var

MOD_TRACK Action, Group_Num, Track_Num

Representation in ST

Representation:

MOD_TRACK(IODDT_Var, Action, Group_Num, Track_Num);

Description of the parameters

The following table describes the input parameters:

Parameter	Type	Comment
IODDT_Var	IODDT*	IODDT variable corresponding to the channel on which the function is to be carried out. Example: IODDT_Var of type T_CCY_GROUP0
Action	INT	Type of action to be carried out: Action = 0: pre-loading of the exchange zone with the initial forward values. Action = 1: pre-loading of the exchange zone with the current forward values. Action = 2: updates the forward value of the track in the module and in the current parameters zone.
Group_Num	INT	Number of group to which the track belongs.
Track_Num	INT	Number of the track in the group.
* IODDT represents the set of types associated with a module or a channel on which the function is to be carried out.
