Module diagnostic

At a Glance

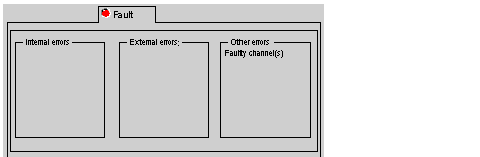

The Module diagnostic function displays the current faults, if any, classified according to category:

A faulty module is shown by certain LEDs turning red, e.g.:

in the configuration level rack editor:
- the rack number LED,
- the module rack location number LED.
in the module level configuration editor:
- the Err and I/O LEDs according to the type of fault,
- the Channel LED in the Channel zone,
- the Fault tab.

Procedure

The table below introduces the procedure for accessing the Module Fault screen.

Step	Action
1	Access the "debug module" screen.
2	Click on the module reference number in the channel zone and select the Fault tab. Result: The list of module faults appears. Please note: The module diagnostic screen is not available in the event of a configuration fault, a major breakdown or a missing module. The following message is then displayed: The module is missing or different to the one configured in this position.
