Description of the SERCOS® Module Adjustment Screens: General
(Original Document)
About us
Introduction
The adjustment screen displays the adjustment parameters of a SERCOS® channel.
These parameters can be modified in offline or online mode.
It also gives access to the configuration and debug screen.
The structure of the adjustment screen is very similar to that of the configuration screen.
NOTE: For an introduction to the processes of configuring, adjusting and debugging a project, see the section on Common application specific functions.
Illustration

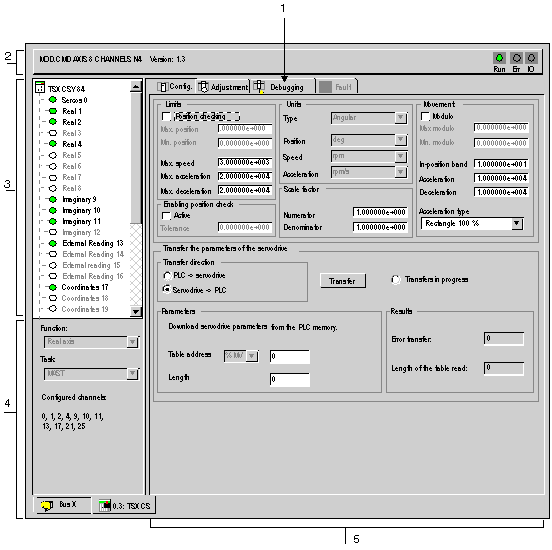

The following figure shows an example of an adjustment screen for the TSX CSY 84 module:
Description
The table below shows the different elements of the debug screen.
Address
Element
Function
1
Tabs
The tab in the foreground indicates the current mode (Debug in this example). Each mode can be selected using the corresponding tab. Available modes are:
  • Debug, accessible only in online mode,
  • Diagnostic (Fault), accessible only in online mode,
  • Adjustment,
  • Configuration.
2
Module zone
Displays the short title of the module.
In the same zone there are 3 LEDs showing the status of the module in online mode:
  • RUN shows the operating mode of the module.
  • ERR indicates an internal module error.
  • I/O indicates a fault outside the module or an application fault.
3
Channel zone
Allows you to:
  • display the tabs, by clicking on the device reference:
    • Description: provides the device characteristics.
    • I/O objects: provides a preview symbol of the input/output objects.
    • Fault: gives access to the device faults (in online mode).
  • choose the channel,
  • display the Symbol, channel name defined by the user (via the variables editor).
4
General parameters zone
Used to unforce bits and view the counting function:
  • Unforce: button used to unforce forced bits.
  • Function: recalls the configured counting function. This information cannot be modified.
  • Task: displays the MAST or FAST task configured. This information cannot be modified.
5
Current parameters zone
This zone displays the I/O status and the different parameters for the count in progress. If the contents of the counting register are unusable following an input fault, the message or LED Invalid measure displays red.
Note: With CTY 2A/4A modules only, the functions to be displayed in the extended screen may be selected in a window located in the parameters zone on the right. With the CTY 2C module, all functions are automatically displayed.
