The TSX CSY 84/164 modules have 5 types of application specific functions:
-
SERCOS® function, installed by channel 0 (SERCOS® ring),
-
Independent axis function (real, imaginary, remote axes), installed by channels 1 – 16,
-
Co-ordinated axis group function, installed by channels 17 – 20,
-
Slave axis group function, installed by channels 21 – 24,
-
Cam profile function, installed by channels 25– 31.
NOTE: Control Expert accepts the MOD_PARAM function when used with the TSX CSY 84 but it is not operational. Hence, the MOD_PARAM function is not available for the TSX CSY 84 module but only for the TSX CSY 164 module.
For each of the application-specific functions (SERCOS® ring, individual axis, co-ordinated group, slave group and Cam profile), exchanges are made at the rate of 1 command per channel for every 2 scans of the MAST PLC task.
The following 32 command bits enable commands to be authorized and confirmed:
-
16 bits CONTROL, active on the rising edge (%Qr.m.c.0 to %Qr.m.c.15),
-
16 bits ALLOW, active on the falling edge (%Qr.m.c.16 to %Qr.m.c.31).
Optimization of Performance
The implicit exchanges (%I, %Q) are installed for all channels, on each cycle of the MAST task. In order to optimize performance, it is recommended when possible to privilege the implicit exchanges (%Q), in relation to the explicit exchanges (WRITE _CMD).
The TSX CSY 84 module must be configured in MAST task.

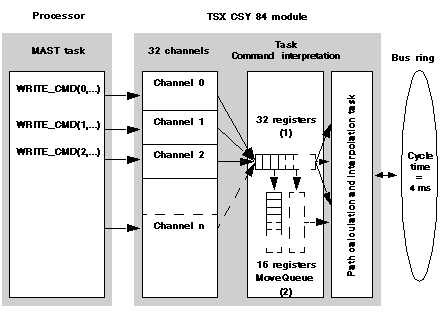

Graphical Representation of Exchanges
Exchanges of a WRITE_CMD command are made according to the following principle:
(1) 32 registers (1 per channel)
(2) 16 registers of 32 commands (8 real, 4 imaginary, 4 co-ordinated axis groups)
