Trajectory description
(Original Document)
Trajectory illustration

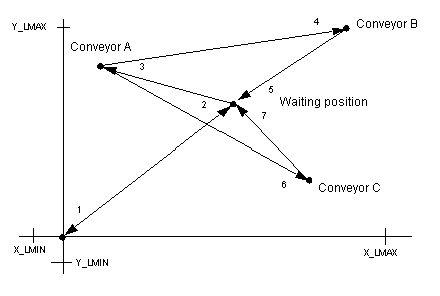

The following diagram describes the trajectory:
Description
1
Homing at speed Vp0
2
Movement at speed Vret to the waiting position (Xatt, Yatt) with stop
3
Movement to the A conveyor belt (XA, YA) until the machined item is detected at speed VA
4
Movement at speed VB on belt B (XB, YB) with stop
6
Movement at speed VC on belt C (XC, YC) with stop
5, 7
Movement at speed Vret to the waiting position (Xatt, Yatt) with stop
