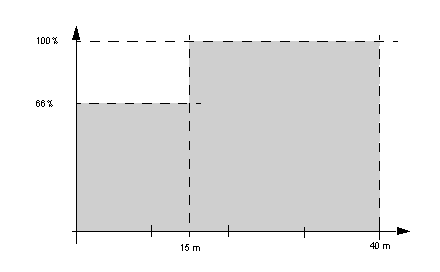

The optical power for the TSX CSY 84 / 164 modules, given as a percentage, is a function of the length of the first segment (between the TSX CSY 84 module or the TSX CSY 164 module and the first drive.) The configuration or adjustment of the optical power must conform to the following graph:
