Channel diagnostics

At a Glance

The module screens propose a Default tab in online mode that provides access to details of faults detected on the module and channel.

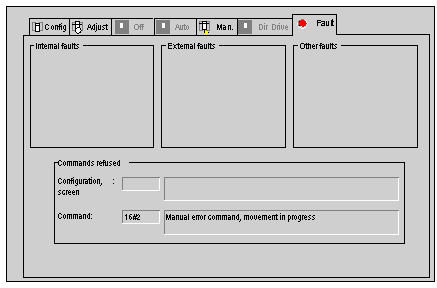

Example of channel diagnostics.

Description of different fields

The Default screen offers the following fields:

Field	Description
Internal faults	Internal errors in the module that generally necessitate the replacement of the module
External faults	Errors coming from the operating part
Other faults	Faults from the application
Commands refused	Indicate the cause and the message number of a command refused
