Direct Mode (Dir Drive)

(Original Document)

At a Glance

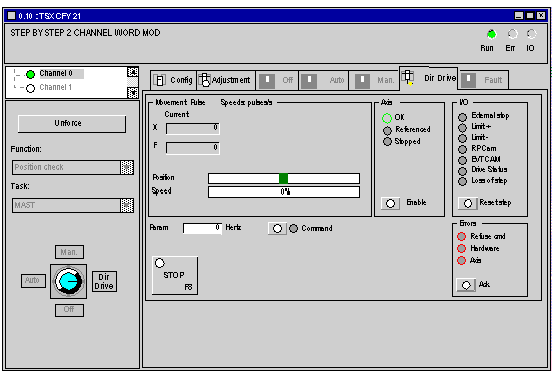

Direct mode allows you to directly control the movement of the moving part, according to the movement setpoint indicated in the PARAM variable.

For details on the fields and buttons in this screen, see Detailed Information on the Debug Screen.
