Stop Mode (Off)
(Original Document)
About us
At a Glance

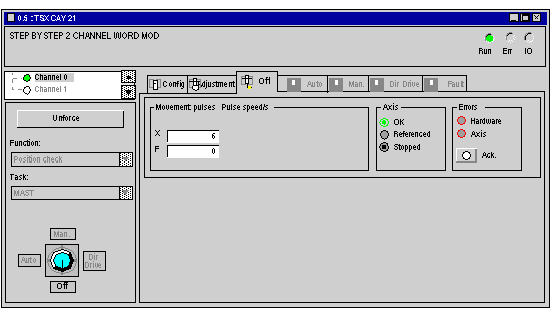

In this mode, the axis control channel only reports on position and speed. The module movement is not monitored by the channel. The translator confirmation output continues to be monitored by the ENABLE (%Qr.m.c.10). command.
For details on the fields and buttons in this screen, see
Detailed Information on the Debug Screen
.
