Preliminary processing is a section at the beginning of the program that manages the operating modes:
With a blocking error:
-
The chart is disabled.
-
You can then drive the moving part in Manual mode, fix the error and acknowledge it from the panel.
-
The chart is reinitialized when the error is fixed and acknowledged.
On switching to Manual mode:
Program in Ladder language

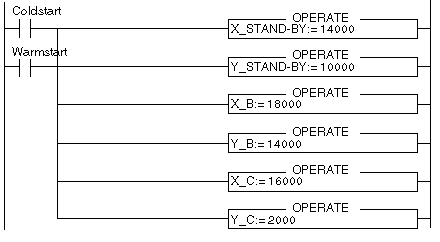

Initializing positions

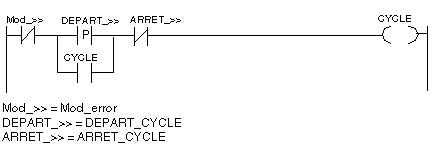

Starting cycle

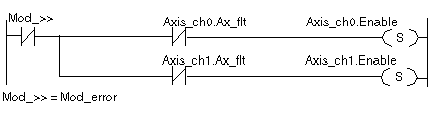

Confirming controller

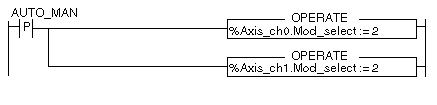

Selecting automatic mode
Selecting manual mode

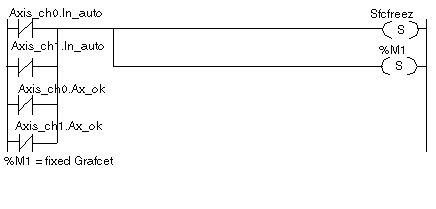

Disabling chart on error or when switching to manual mode

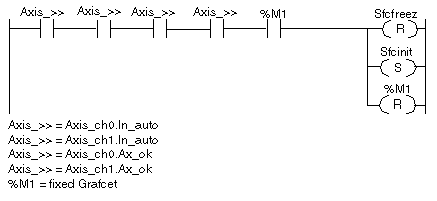

Reinitializing chart
Signaling errors
