Connection with TELEFAST pre-wiring system
(Original Document)
About us

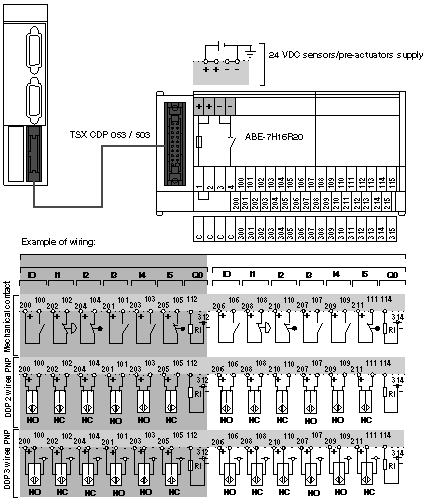

Diagram of the principle
This connection is made using a TELEFAST 2 base: ABE-7H16R20.
NO: normally open,
NC: normally conductor.
