Connection using a TSX CDP 301/501 pre-wired strand
(Original Document)
General
Connection using a pre-wired strand enables direct contact to the actuators, pre-actuators or any terminal system. This strand comprises 20 gage 22 wires (0.34 mm2) with a connector at one end and free wires at the other end, labeled using a color code.
Illustration

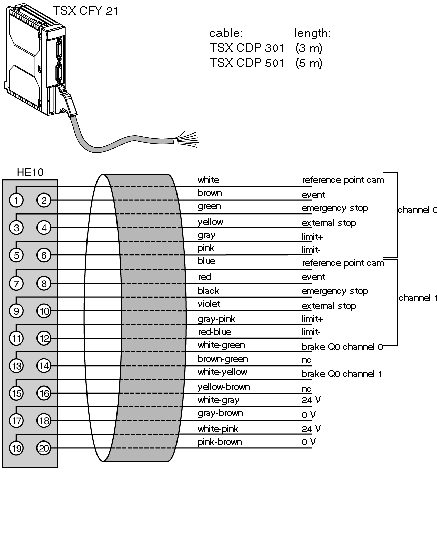

This diagram shows the color code:
