Connecting to a translator with NPN open collector interface
(Original Document)
About us
Diagram of the principle
Only one wire is used per input/output signal. If the translator does not provide 5 V insulated voltage do not forget to supply the interface from the insulated 5 V provided by the module.

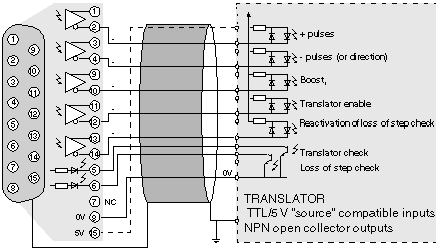

This diagram illustrates the principle of connection:
