Connection to a translator with RS 422/485 interface
(Original Document)
About us
Diagram of the principle
It is recommended that you use a shielded cable containing 7 twisted pairs. The + and – wires of each module output signal must be connected in the same pair.

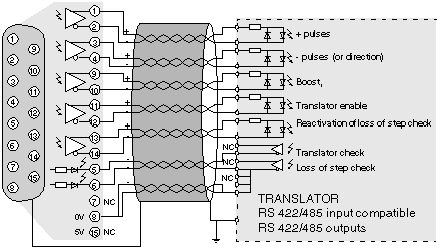

This diagram illustrates the principle of connection:
