When you have entered the adjustment parameters, you must confirm these parameters using the command
Edit/Confirm or by clicking the icon.
Parameters outside the limits
If one or several parameter values are not within the authorized limits, an error message appears referencing the parameter concerned.
You must fix the parameter(s) that are at fault, then execute a further confirmation.
No modification of the configuration parameters

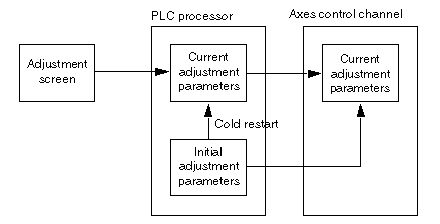

If you have not modified the configuration parameters, the modification of the adjustment parameters does not interrupt the working of the axis but changes its behavior.
The modified adjustment parameters are the current parameters (the initial parameters remain unchanged).
NOTE: During a cold start the current parameters are replaced by the initial parameters.
The initial parameters can be updated by the save command or by a reconfiguration operation.
