Parametering the cams
(Original Document)
About us
Role
This operation allows you to define the cam adjustment parameters.
Preliminary conditions
These cams must first be created.
Procedure
The following table describes the operations to be performed:
Step
Action
1
Double-click on the cam to be parameterized.

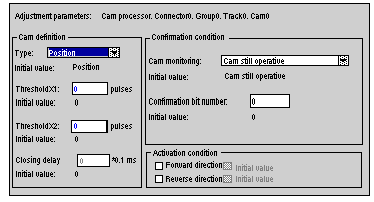

Result
2
Enter the value of each parameter:
  • type of came: Position, Monostable or Braking,
  • values of associated thresholds, and time delay (for the Monostable cam),
  • cam confirmation condition with the confirmation bit number,
  • direction for which the cam is active.
