Introduction to a simple example

(Original Document)

Example

This is the implementation of an output on detection of a . The used is a type 1 rotating axis.

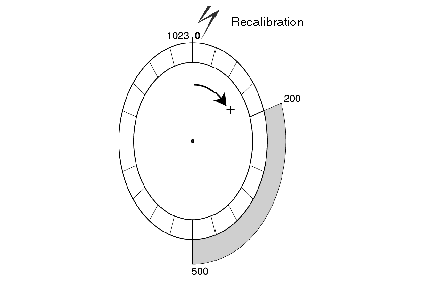

The electronic cam is set between 200 and 500. It activates output 0 on 0.

Cam

Logic state which switches to 1 when an angular value in the cycle is overshot and which resets to 0 according to the type of cam.

A cam is systematically associated to one and only one track. Several cams can be associated to one track.

Axis

These are all the external elements that control the movements of the machine (reducer, encoder…).

Track

This is the logic state which can be applied to the physical output. The maximum number of tracks is 32.
