Connecting the track outputs of the TSX CCY 1128
(Original Document)
About us
Number of track outputs and their distribution
The TSX CCY 1128 module has 32 track outputs of which 24 are physically accessible.
These track outputs are divided into 4 groups on two HE10 connectors at the front panel of the module
Connectors
0
1
Groups
0
1
2
3
Tracks
01234567
0123
01234567
0123
Outputs
Q0.
01234567
Q1.
0123
Q2.
01234567
Q3.
0123
Diagram

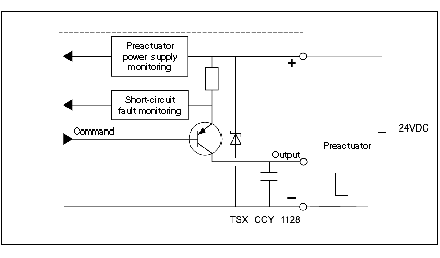

The diagram below shows a track output.
Positioning the HE10 connector, and identifying the signals

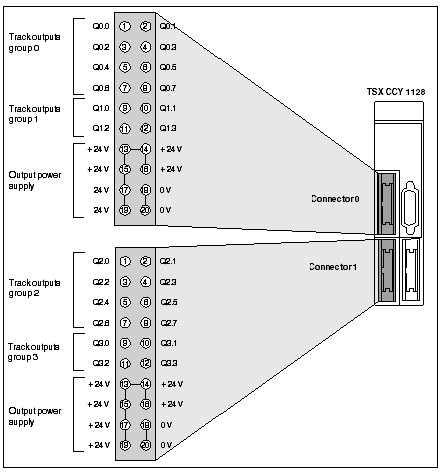

The diagram below represents the position of the HE10 connectors on the module in relation to the track outputs and the identification of the different signals delivered by the connectors.
Process diagram
The diagrams below show the connection process.
Connection using TELEFAST connector and TSX CDP ••3 cable

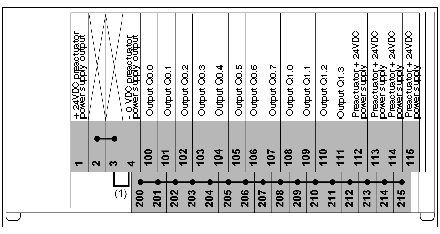

Availability of connector 0 signals at the TELEFAST screw terminal block

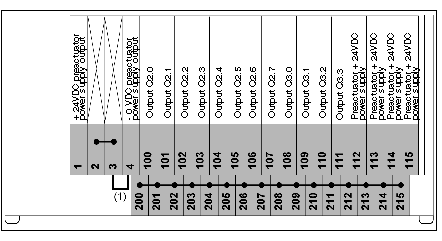

Availability of connector 1 signals at the TELEFAST screw terminal block
(1) At the TELEFAST ABE-7H16R20 connector, the position of the jumper wire determines the polarity of all terminals from 200 to 215:
Connection using TELEFAST connector and TSX CDP ••3 cable

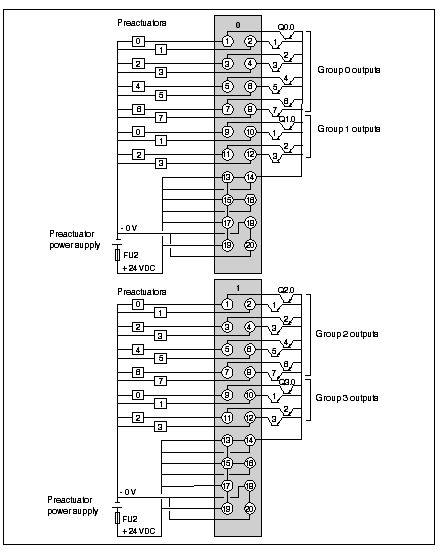

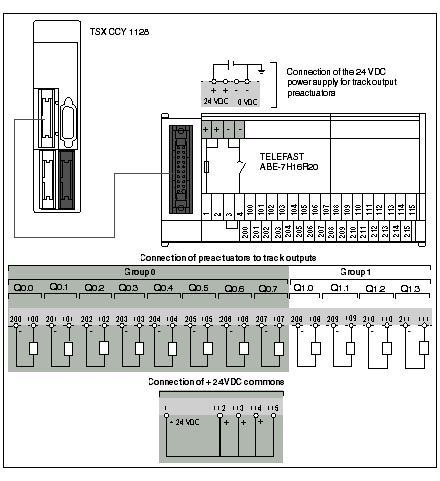

Example for connecting pre-actuators to the track outputs of connector 0 (groups 0 and 1). Proceed in the same way for connector 1 (output groups 2 and 3).
The table below gives the correspondence between the TELEFAST screw terminal block and the HE10 connectors of the module (connectors 0 and 1).
No. of terminal on TELEFAST screw terminal block
Pin no. of
HE10 connector
Type of signals at connectors
Functions at connectors
0
1
0
1
100
1
Q0.0
Q2.0
Group 0 track outputs
Group 2 track outputs
101
2
Q0.1
Q2.1
102
3
Q0.2
Q2.2
103
4
Q0.3
Q2.3
104
5
Q0.4
Q2.4
105
6
Q0.5
Q2.5
106
7
Q0.6
Q2.6
107
8
Q0.7
Q2.7
108
9
Q1.0
Q3.0
Group 1 track outputs
Group 3 track outputs
109
10
Q1.1
Q3.1
110
11
Q1.2
Q3.2
111
12
Q1.3
Q3.3
112
13
+ 24VDC
Pre-actuators receive a shared + 24VDC supply if the connection at terminal 1 of the TELEFAST is external
113
14
114
15
115
16
+ 24VDC
17-19
+ 24VDC
Track outputs’ pre-actuator supply
- 0 VDC
18-20
- 0 VDC
1
-
+ 24VDC
Terminals 200 to 215 at + 24VDC if terminals 1 and 2 are connected
2
-
Shared by terminals 200 to 215
3
-
Shared by terminals 200 to 215
Terminals 200 to 215 at – 0 VDC if terminals 3 and 4 are connected
4
-
- 0 VDC
200...215
-
  • + 24 VDC if terminals 1 and 2 are connected, - 0VDC if terminals 3 and 4 are connected
  • + 24 VDC if terminals 1 and 2 are connected, - 0VDC if terminals 3 and 4 are connected
Connecting shared sensors
Connection using TSX CDP •01 strips
This type of connection is used to connect all signals travelling to or from the module directly:

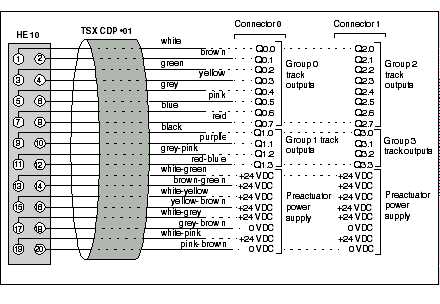

The diagram below gives the correspondence between wire color and HE10 connector pin number for connectors 0 and 1
