Introduction to the connection interfaces of the TSX CCY 1128
(Original Document)
About us
Connection interfaces
The three HE10 connectors located on the front panel of the module are for connecting:
The module is connected to the sensors and pre-actuators using:
Illustration

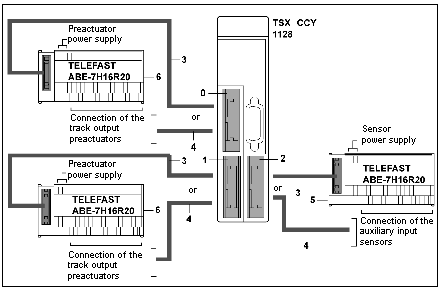

The diagram below shows the input/output connection strip of a TSX CCY 1128 module.
Elements and their functions
The table below gives the different elements of the connection strip.
Number
Elements
Functions
0
20-pin HE10 type connector
Allows connection of:
  • the pre-actuators controlled by the group 0 and 1 track outputs
  • the pre-actuator supply
1
20-pin HE10 type connector
Allows connection of:
  • the pre-actuators controlled by the group 2 and 3 track outputs
  • the pre-actuator supply
2
20-pin HE10 type connector
Allows connection of:
  • the sensors that control the auxiliary inputs,
  • the sensor supply,
  • the incremental or absolute SSI encoder supply
3
TSX CDP••3 cables, equipped with a HE10 connector at each terminal
Allow the module to be connected to the TELEFAST connector. 5 lengths are suggested:
  • TSX CDP 053: 0.5 meters in length
  • TSX CDP 103: 1 meter in length
  • TSX CDP 203: 2 meters in length
  • TSX CDP 303: 3 meters in length
  • TSX CDP 503: 5 meters in length
4
TSX CDP•01 strips, equipped with a HE10 connector at one terminal, and free wires at the other, identified using a color code
Allow direct connection between the module inputs/outputs and the sensors and pre-actuators. 2 lengths are suggested:
  • TSX CDP 301: 3 meters in length
  • TSX CDP 501: 5 meters in length
5
TELEFAST ABE-7H16R20 connectors
Connects a HE10 connection and a screw terminal block connection, allowing a rapid connection of supplies, sensors and pre-actuators
Connection accessories
The sensors are connected to the auxiliary inputs, and the pre-actuators to the track outputs by:

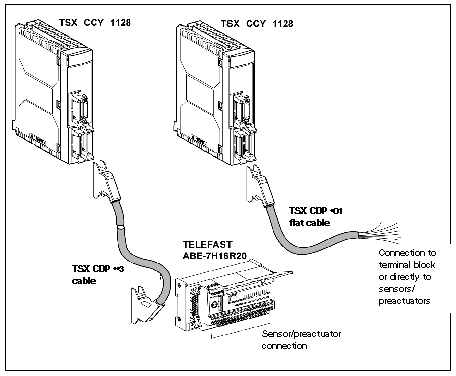

The diagram below shows these two types of connection
