The TSX CCY 1128 module can be installed onto all PLC station racks:
-
TSX RKY•• extendable racks located on the main segment of bus X, (the segment on which the rack supporting the processor is installed).
-
TSX RKY•• extendable racks located on the remote segments of bus X.
Installation onto a rack belonging to the main segment of bus X

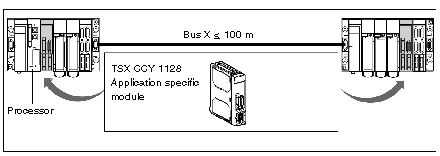

The diagram below represents the installation of the module onto a rack belonging to the main segment of bus X. The module can be installed onto the rack supporting the processor and onto all other racks present on bus X. The distance between the rack supporting the module and the rack supporting the processor must not exceed 100 meters.
Installing the module
Installing onto a rack belonging to a remote segment of bus X

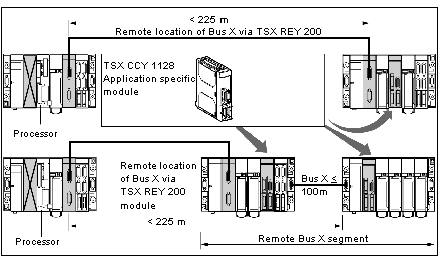

The diagram below represents the installation of the module onto a rack belonging to the remote segments of bus X. The distance between the rack supporting the module and the rack supporting the processor must, under no circumstances, exceed 225 meters.
Installing the module
