Installing the TSX CCY 1128 in a PLC station rack
(Original Document)
About us
Introduction
The TSX CCY 1128 module can be installed into all the available slots of the TSX RKY •• rack of a TSX 57/PMX 57/PCX 57 PLC station, with the exception of the slots taken up by the supply and processing modules.
Illustration

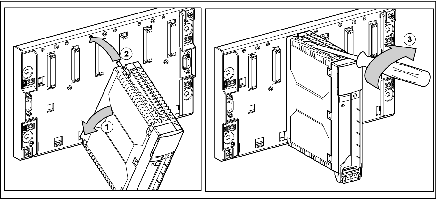

The diagrams below show the procedure for installing a module from the Premium range onto the TSX RKY •• rack.
Procedure
The table below describes the procedure:
Step
Action
1
Insert the pins at the back of the module into the centering holes located on the lower part of the rack.
2
Twist the module to bring it into contact with the support.
3
Fix the module onto the rack using the screw located on the upper part of the module. Maximum screw tightening: 2.0 N. m
