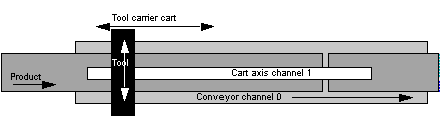

The product feed axis is parallel to the cart feed axis. The cutting tool moves perpendicularly to the product feed axis either by rotating or on a linear axis.

In this case, Angle Variable and Material length = Mvt.Axis0/K0 are not checked, so Movement ratio = 1/1.

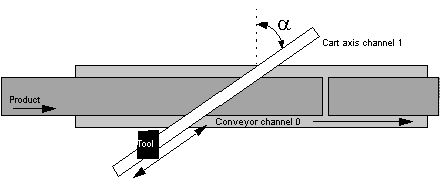

The product feed axis and the cart feed axis form an angle. The cutting tool only moves up or down. The movement of the tool carrier cart should cover the whole of the surface of the product to be cut.

In this case, Angle Variable and Material length = Mvt.Axis0/K0 are not checked, so Movement ratio = 1/ .

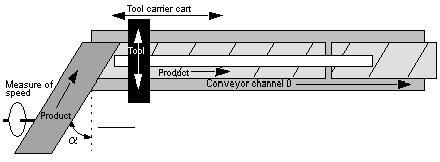

The product feed axis and the cart feed axis are parallel but the insertion of the product forms an angle to the belt. The cutting tool moves perpendicularly to the product feed axis either by rotating or on a linear axis. The feed speed is picked up when the product is inserted and varies from the belt speed.

In this case, Angle Variable and Material length = Mvt.Axis0/K0 are checked, so Movement ratio = 1/1, K0 = .

The Dist parameter from the SMOVE with G22 instruction allows consecutive cuts of varying length.

A sensor detects the course of the product to be cut. When the event is received, the module memorizes the position and calculates the cutting point according to the following formula: Control source = Memorized position + Cut length on event.

In this case, Cut on event. is checked.
