The adjustment screen is a graphic tool intended for the
adjustment of a module selected in a rack. It displays the current and initial parameters associated with the channels of this module, and allows these to be modified in offline and online modes.
The initial parameters are:
-
Parameters entered (or defined by default) in the configuration screen in offline mode. These parameters have been confirmed in the configuration, and transferred to the PLC.
-
Parameters taken into account during the last reconfiguration in online mode. These parameters cannot be modified from this screen. On the other hand, they can be updated using the current parameters.
Current parameters are those which have been modified and confirmed from the adjustment screen in online mode (or by program via an explicit exchange). These parameters are replaced by the initial parameters after a cold restart.
NOTE: It is mandatory to save adjustment parameters after they have been determined.

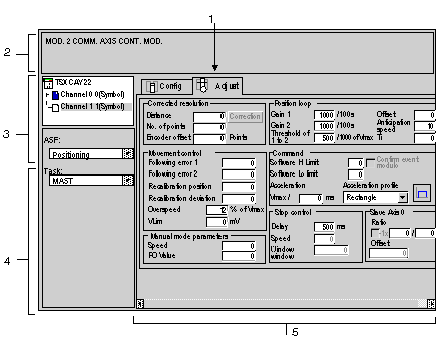

The diagram below shows an adjustment screen.
The following table presents the various elements of the adjustment screen and their functions.
|
Number
|
Element
|
Function
|
|
1
|
Tabs
|
The tab in the foreground indicates the current mode (Adjustment in this example). Each mode can be selected using the respective tab. The available modes are:
|
|
2
|
Module area
|
Contains the abbreviated title of the module.
|
|
3
|
Channel area
|
Is used:
-
By clicking on the reference number, to display the tabs:
-
To select a channel,
-
To display the Symbol, name of the channel defined by the user (using the variable editor).
|
|
4
|
General parameters area
|
Allows you to choose the axis control function and the task associated with the channel:
-
Function: axis control function among those available for the modules involved. Depending on this choice, the headings of the configuration zone may differ. By default No function is configured.
-
Task: defines the (MAST, FAST or AUX0/1) task in which the explicit exchange objects of the channel will be exchanged.
|
|
5
|
Adjustment field
|
This field comprises the various values of the adjustment parameters.
|
