As implied in its name, preliminary processing is processing that is carried out first. A section is created at the beginning of the project to manage operating modes:
On a blocking fault:
-
The chart is frozen,
-
The moving part can then be controlled in manual mode, and the fault can be corrected and acknowledged from the front panel,
-
The chart is reinitialized when the fault has been corrected and acknowledged.
When switching to manual mode:
Program in Ladder Language

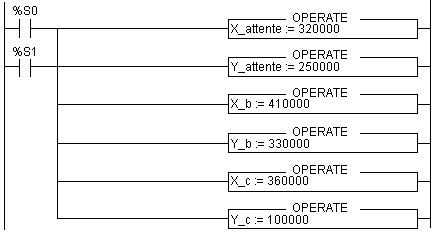

Position initialization

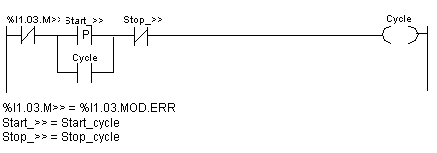

Start cycle

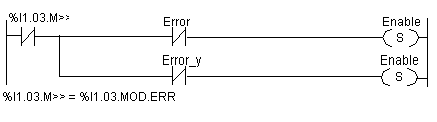

Enable speed controller

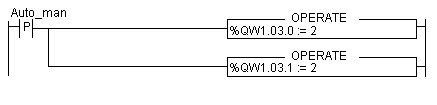

Automatic mode selection (when there are 2 independent axes)
Automatic mode selection (when there are 2 interpolated axes)

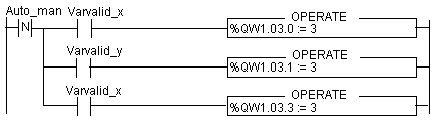

Manual mode selection

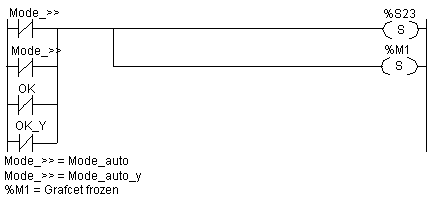

Chart freezing on a fault or when switching to manual mode

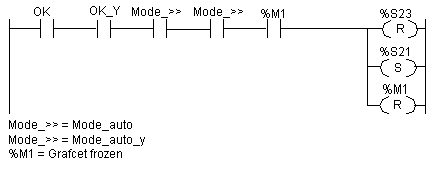

Chart reset
Fault signalling
