Connecting to a NUM MDLA Variable Speed Controller

General

The NUM 400 V controller contains all the elements necessary to functioning.

It offers an output whose signals simulate the functioning of an incremental encoder as a position report. Direct connection is possible using the 2.5 cm or 6m long TSX CXP 233 / 633 cable accessory.

Illustration

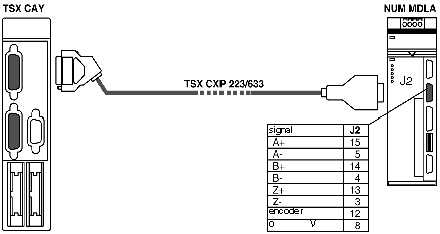

Connection to a variable speed controller:

Cable length:

Cable	Length
TSX CXP 213	2.5 cm
TSX CXP 633	6 m

NOTE: Here, it is not necessary to have an encoder supply.
