Connecting Absolute Encoder // via a TELEFAST with ABE-7CPA11 Adaptation

(Original Document)

General

the multiplexing function must not be used: each channel uses a base, to which only one absolute encoder with parallel outputs is connected,
the encoder frame should be configured as follows:
- code: binary or Gray (according to the encoder type),
- header bits: 0,
- data bits: 24 (irrespective of the number of encoder data bits),
- status bits: 3,
- rank of the error bit: 1 (optional),
- parity: even.

Illustration

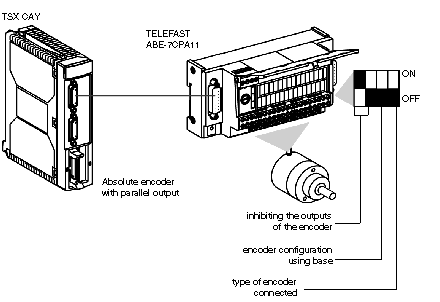

This diagram shows the connection between a TSX CAY and a TELEFAST ABE-7CPA11:
