This pre-wired cable is made up of a SUB-D 9-pin connector at one end, to connect to the TSX CAY module, and free wires at the other end. With a length of 6m, it is made up of 24 gage wires, corresponding to the SUB-D connector pins; It enables direct connection of the equipment to the module. The different signals are labeled using a color code.
NOTE: It is imperative to connect the shielding to the protective ground of the connected equipment.

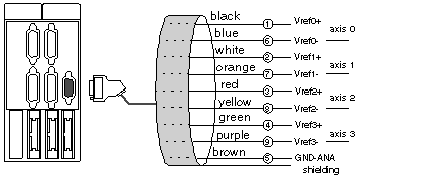

This diagram illustrates the principle for connection using TSX CDP 611 strips:
NOTE: The TSX CDP 611 cable is 6m in length.
