Disassembling an Adapter from an I/O Base

Overview

This section contains safety precautions and a procedure for disassembling an adapter from an I/O base.

DANGER

RISK OF ELECTRICAL SHOCK

Before removing an adapter from the base, disconnect the wiring connectors. Make sure that the I/O base is not under power when it does not have a Momentum adapter mounted on it.

Failure to follow these instructions will result in death or serious injury.

Tools Required

A flat-head screw driver may be needed to disassemble the unit.

Disassembling an Adapter from an I/O Base

Follow the steps in the table below to remove an adapter from an I/O base.

Step	Action
1	Choose a clean environment to disassemble the unit, in order to protect the circuitry from contamination.
2	Make sure that the I/O base is not under power by removing the terminal connectors from the I/O base.

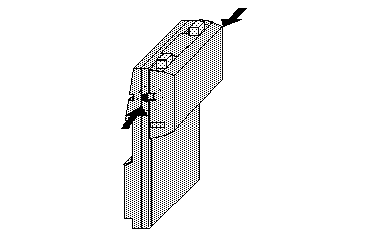

3	Use a screwdriver to push the clips on both sides of the adapter inward, as shown in the illustration below.

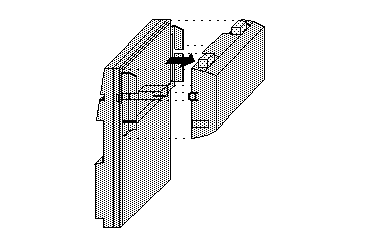

4	Lift off the adapter.
