Overview
This section describes how to interpret the value of the analog output channels.
Key
This section describes output words 2 ... 5, as highlighted in the table below:
Word
Output Data
1
Parameters for output channels 1 ... 4
2
Value, output channel 1
3
Value, output channel 2
4
Value, output channel 3
5
Value, output channel 4
Analog Output Values

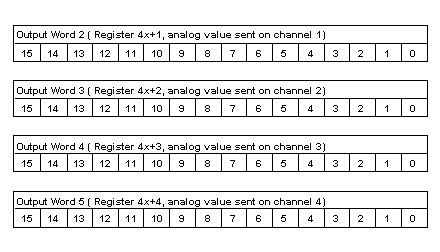

Mapping of analog output values is shown below.
