This section contains illustrations explaining the analog/digital relation for the voltage and current output ranges.

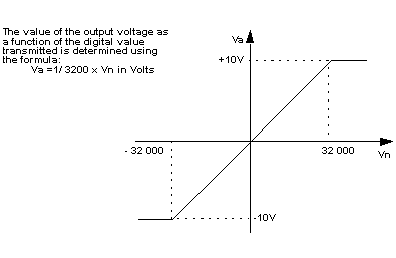

The following illustration shows the analog/digital relation at +/- 10 V:

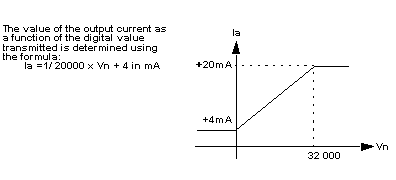

The following illustration shows the analog/digital relation at 4 ... 20 mA current:
