Input Measuring Ranges
Original instructions
Overview
This section contains illustrations explaining the analog/digital relation for the three input measuring ranges.
+/- 10 V

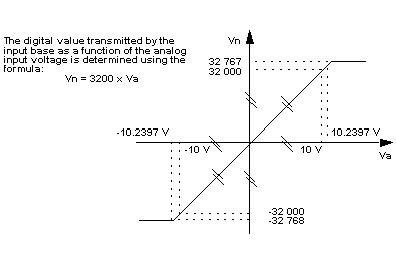

The following illustration shows the analog/digital relation at +/- 10 V:
+/- 5 V

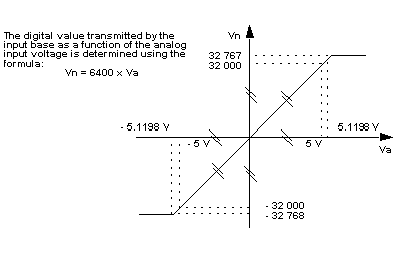

The following illustration shows the analog/digital relation at +/- 5 V:
4 ... 20 mA

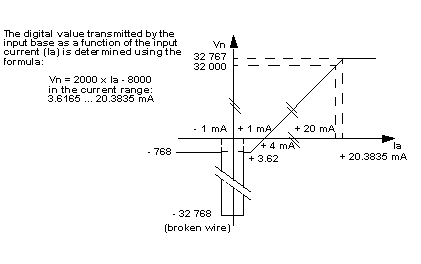

The following illustration shows the analog/digital relation for the input measuring at 4 ... 20 mA current:
