This section contains diagrams to assist you in wiring the following types of devices:

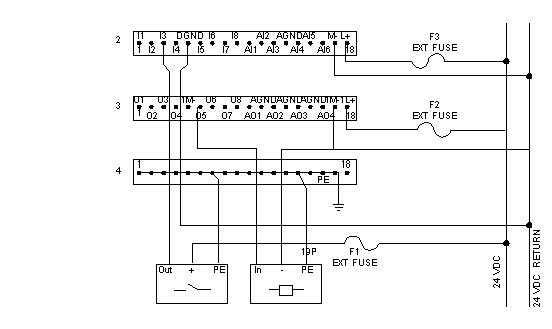

The diagram below shows an example of wiring for discrete I/O devices:
Recommended fuses:
-
F1,F3-use a 1A fuse, Wickman 181110000 or equivalent
-
F2 -use a 2.5A fuse, Wickman 181125000 or equivalent

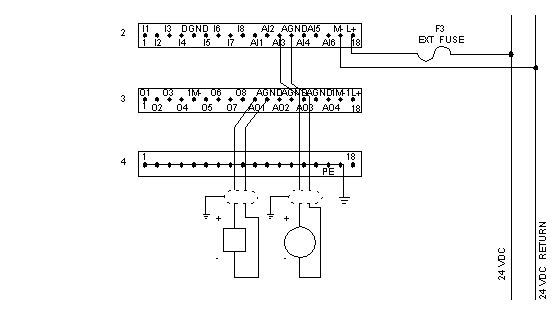

The diagram below shows an example of wiring for Analog I/O devices:
Recommended fuses:
