This section contains a diagram to assist you in wiring 2-wire field devices.

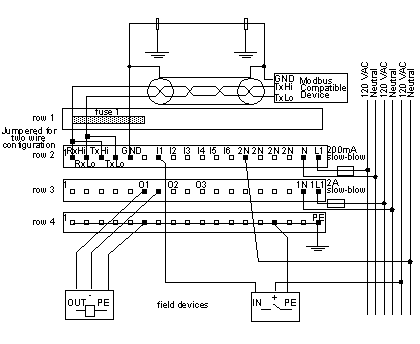

The diagram below shows an example of wiring for 2-wire devices.
The communication cable should be twisted shielded cable. Tie shield on both ends to earth ground near the associated Modbus equipment.
