Overview
This section contains an illustration showing the internal connections between terminals on the I/O base.
Illustration

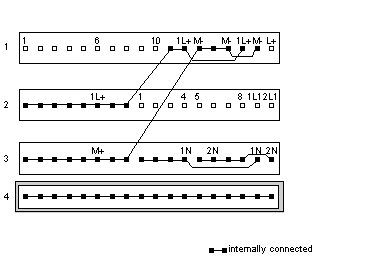

Rows 1 through 3 show the internal connections between terminalson the I/O base. Row 4 shows the internal connections on the optional busbar.
