Overview
This section contains an illustration of the front panel of the 170 CPS 111 00 Power Supply and a description of the LEDs.
Front Panel Illustration

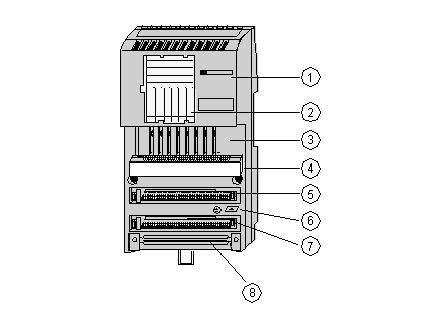

The front panel of the power supply module is shown in the illustration below.
Components of the power supply module
Label
Description
1
Module identifier
2
Identification label
3
LED status display
4
Protective cover
5
Input voltage (AC) terminal strip connector mounting slot
6
PE spade-lug connector
7
Output voltage (DC) terminal strip connector mounting slot
8
Grounding busbar connector mounting slot
LED Illustration
This Module has one LED which is shown in the illustration below.
LED Descriptions
The Pwr OK LED is described in the table below.
Indicator
Condition
Message
Pwr ok
Green
Power supply module is ready
Off
Power supply module not ready
