Inserting Terminal Connectors
Original instructions
About us
Overview
DANGER
RISK OF ELECTRIC SHOCK
Make sure that power is not present while you are handling the coding keys on the I/O base and on the terminal connectors. Electrical voltages are present when the I/O base is under power.
Failure to follow these instructions will result in death or serious injury.
This section contains safety precautions and a diagram illustrating how to insert terminal connectors in a TSX Momentum I/O base.

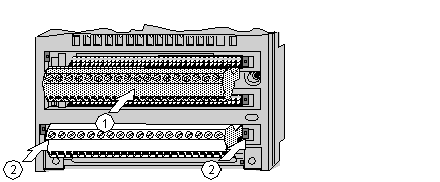

Inserting a Terminal Connector
Install the terminal connectors by pushing them into the coded pin connectors (row 1 ... 3 of the I/O base).
