Wiring Diagrams
Original instructions
About us
Overview
This section contains diagrams to assist you in wiring the following types of devices:
I/O Type
Diagram
Discrete input
2- and 4-wire sensors
Discrete output
3-wire actuators
Analog output
2-wire actuators
Analog input
3-wire sensors

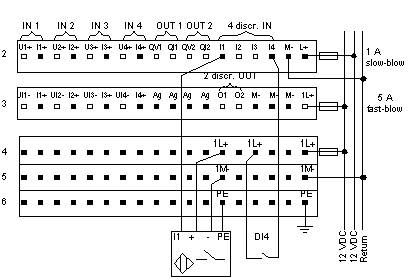

Discrete Inputs
The diagram below shows an example of wiring for discrete inputs:

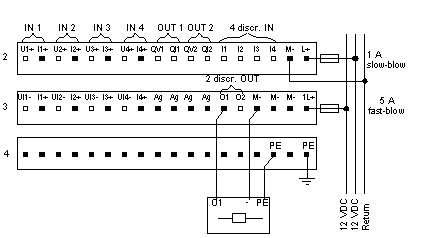

Discrete Outputs
The diagram below shows an example of wiring for discrete outputs:

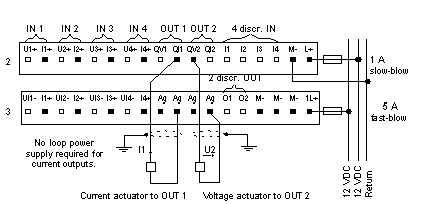

Analog Outputs
The diagram below shows an example of wiring for analog outputs:
Analog Inputs
The diagram below shows an example of wiring for analog inputs:
