This section contains diagrams to assist you in wiring the following types of devices:

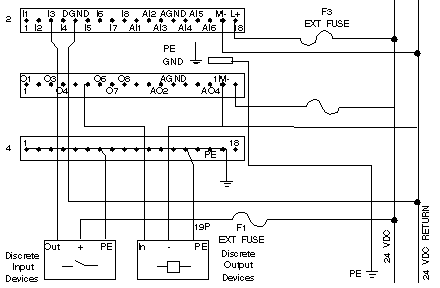

The diagram below shows field wiring for discrete input and discrete output devices.
Recommended fuses:
-
F1,F3-use a 1A fuse, Wickman 19181-1A or equivalent
-
F2 -use a 2.5A fuse, Wickman 19181-2.5A or equivalent

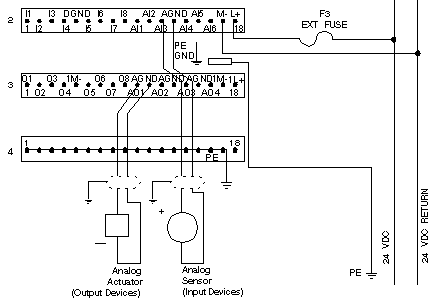

The diagram below shows field wiring for analog input and analog output devices.
Recommended fuses:
