Clearing All the Configuration Parameters
Use the Clear All Configuration Parameters page to clear all configuration parameters stored in FLASH.
The parameters cleared from FLASH are:
-
all IP configuration parameters and the role name
-
all communication adapter configuration parameters
-
all SNMP configuration parameters
-
all stored passwords
Enter a password in the Configuration Password text box. Select Clear All.
NOTE: The Schneider Electric default configuration password is httpcfguser (lower case).
Purpose of the Clear All button
|
Button Selected
|
Result
|
|
Clear All
|
Clears all the parameters in the Momentum 170ENT11001.
|

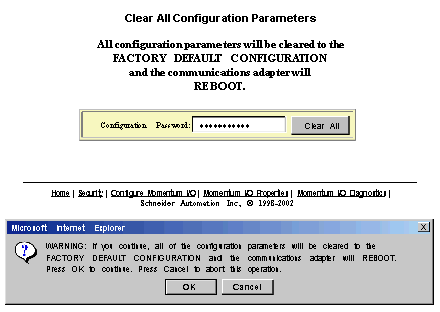

Before completing the action, a warning message appears.
-
Important: If you continue, all the configuration parameters will be cleared to the factory default configuration, and the communications adapter will reboot. Press OK to continue. Press Cancel to abort this operation.
NOTE: Selecting the Clear All option returns the Momentum 170ENT11001 to an out-of-the-box state, which is the factory default configuration.
Enter the configuration password, and click Clear All.
