The adapter has one RJ45 connector for a 10Base-T UTP/STP (unshielded or shielded twisted pair) cable. The adapter should be cabled directly to the Ethernet hub.

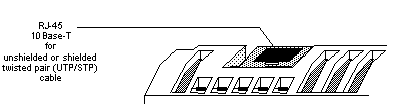

Network connector for Momentum 170ENT11002
Network connector for Momentum 170ENT11000
Network Labels: Global Address and IP Address
The adapter has two labels mounted on its end panels. One label identifies the adapter’s IEEE global address (MAC address). The other identifies its Internet protocol address (IP address).
The installer records the global address and gives it to the network administrator for use in establishing an IP address for the adapter during the BOOTP process at startup. When the IP address has been assigned, the administrator gives this address to the installer who writes it onto the adapter’s IP address label.

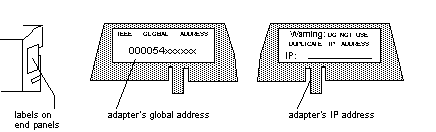

Adapter labels: global address and IP address
